MANIPULATORS & STAGES
총 6개 제품
상위 분류: Huntington

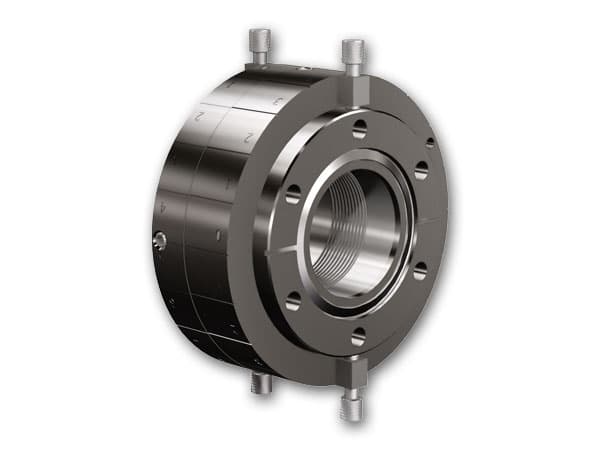

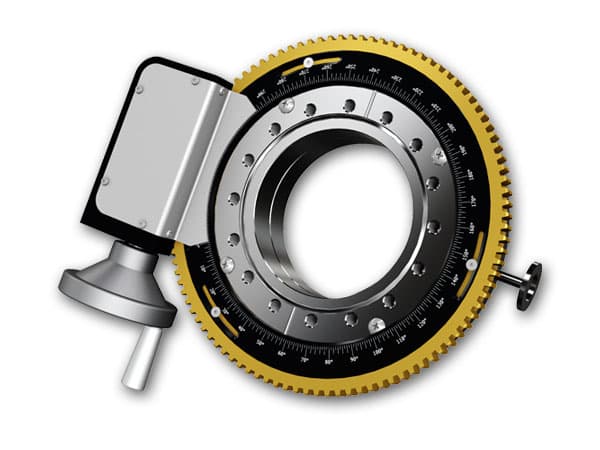

Rota-Port Manual Rotational Stage
"Rota‐Ports are differentially pumped high vacuum rotational mounting devices which provide full rotational capability. Commonly used with cryostats and instrumentation feedthrough collars but will also support almost any combination of flange mounted devices. An angular indication ring is included with resolution to 1 degree.Please note: These devices require Lead Times."VF-274 SERIES STAGEROTARYROBUST GEARBOX, STANDARD MANUAL with MOTORIZED OPTIONS
Accu-Port Manual Tilt Stage
"When used in conjunction with one of Huntington’s many single or dual axis Stages, the ACCU-PORT® adds tilt motion to Z-Axis or X-Y-Z Axis Manipulators. All Dimensions: inch (mm)."VF-175 SERIES STAGETILTCOMPACT DESIGN, AVAILABLE IN 2° and 10° INCLUDED ANGLES

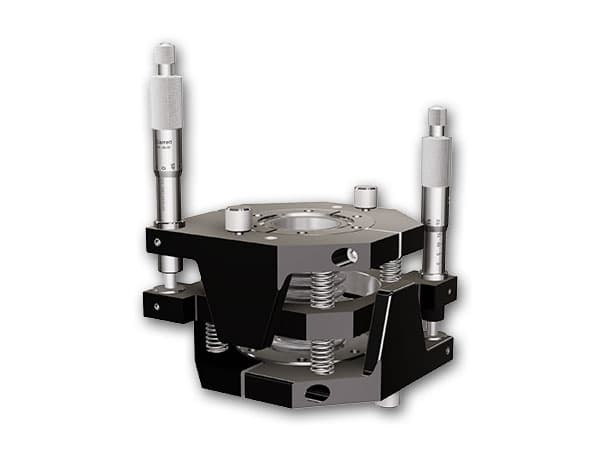

Gimbal Tilt Motion Stage
The manual Gimbal Assembly is available with or without Bellows and/or with or without Micrometers. The modular design of the Gimbals allows for the retro-fit of Micrometers at a later date if more precision is required than what was originally anticipated.VF-171 SERIES STAGEGIMBALSTRONG FRAME, with/without BELLOWS or MICROMETERS

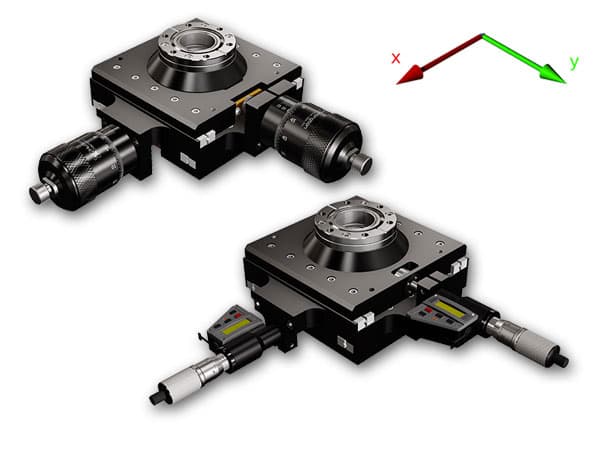

X-Y-axis Manipulators, Analog & Digital
This section features Manipulators and Stages available in Tilt-Motion & Rotary action Stages, Z Axis Manipulators in Standard and Compact Configurations as well as multi-axis X-Y-Z Manipulators. Using an advanced modular design all Huntington Manipulators are more cost-effective and feature greater rigidity.COMPACT X-Y MOTIONSTAGESCHOICE of ANALOG or DIGITAL MICROMETER, MOTORIZED OPTIONS

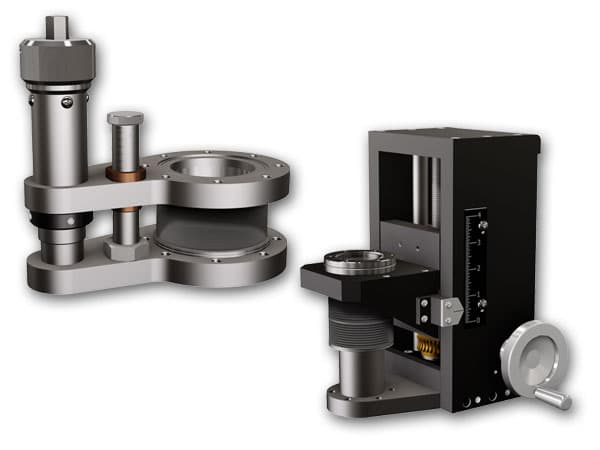

Z-axis Manipulators, Compact & Modular
Huntington’s compact Z-axis series of manipulators allow for installations with limited space. Featuring a smaller outline and simplified designs these manipulators are simple, rugged and cost-effective. Compact manipulators feature 2 3/4” or 4 1/2” VAC-U-FLANGE® mounting in stroke lengths from 1 to 6”. Operation is via a hand knob with visual positioning determined by an engraved scale. Edge welded stainless steel bellows and tapped VAC-U-FLANGES® create a robust vacuum envelope.SINGLE AXIS (Z) MOTIONMANIPULATORSTANDARD or COMPACT DESIGN, MANUAL & MOTORIZED OPTIONS

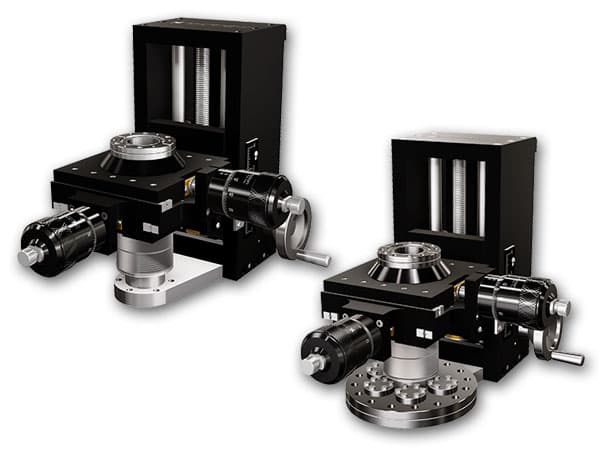

X-Y-Z-axis Manipulators, Std. & Multiport
This section features Manipulators and Stages available in Tilt-Motion & Rotary action Stages, Z Axis Manipulators in Standard and Compact Configurations as well as multi-axis X-Y-Z Manipulators. Using an advanced modular design all Huntington Manipulators are more cost-effective and feature greater rigidity.MULTIPLE AXIS (X-Y-Z) MOTIONMANIPULATORMANUAL or MOTORIZED OPTIONS, STANDARD & MULTI-PORT BASE
